Major Features

•    Silicon rubber shell protection and stable bracket for table usage.
•    Lightweight for carrying and Easy-To-Use.
•    Using DB9 type connector compatible with Nellcor Spo2 Sensor.
•    Support the oximeter probe for adult, neonate and infant.

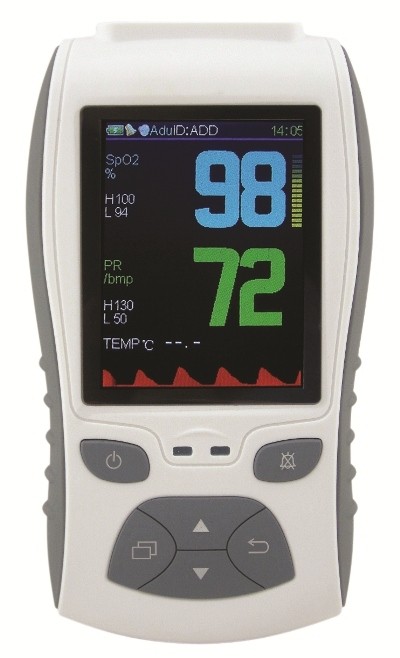

•   Big size 2.8 inch color TFT LCD display for SPO2/PR/Pulse bargraph/ plethysmogram.
•   Visual and sound alarm function.
•   Adjust the parameters in friendly menu.
•   Low Battery voltage indicator.
•   Automatically switch off within 3 minutes when no signal
•   Inner Flash memory can store testing result up to 360 hours.
•   USB interface support upload the data to computer and review the history data with software in PC.
•   Standard 4X AAA 1.5V Alkaline bаttеrу or rechargeable Li battery is available for power supply

Main performance

SpO2

Patient: adult, child

Hemoglobin saturation display: 35%-99%

Resolution:1 %

Accuracy: ±2%(70%-99%)  unspecified(0%-69%)

PR

Range: 0bpm-250bpm

Resolution: 1bpm

Accuracy: ±1bpm

   Power Consumption: Smaller than 80mA(Normal)

   Low perfusion Condition ≤0.3%

Temperature

Channel                             1

Measuring and Alarm Range        18 ~ 45 °C

Resolution                          0.1°C

Accuracy                                 ±0.1°C

Actualization interval            about 1 Sec.

   Average Time Constant              < 10 Sec

Electrical specifications

Working voltage: DC4.0V-6.0V or 3.5V-4.2V Li battery.

Internal battery: 4 AAA alkaline battery or 1800MAH rechargeable Li battery

Run time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)
