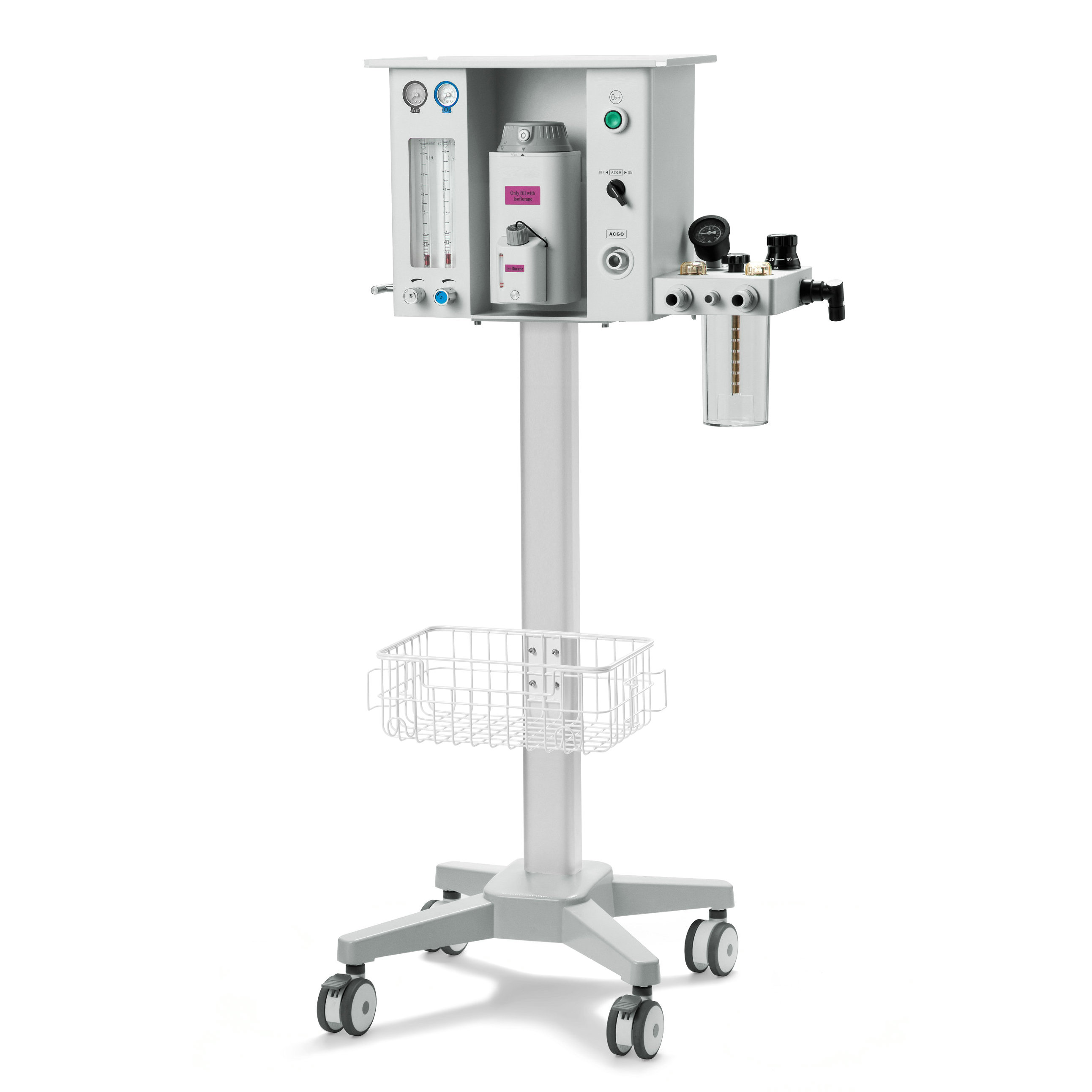

🔹 Compact and Mobile Design

• Total weight ≤29 kg including trolley for easy mobility
• Dimensions: 1193mm (H) × 480mm (W) × 634mm (D)
• Equipped with 4 castors, 2 with brakes for stability
• Top shelf supports up to 10 kg for convenient accessory placement

🔹 Reliable Pneumatic System

• Supports pipeline supply (air and oxygen) with pressure range: 280–600 kPa
• Flowmeter range: 0–5 L/min with high accuracy and fine adjustment
• Mechanical Auxiliary Common Gas Outlet (ACGO) for intuitive operation
• Oxygen flush function: 25–75 L/min for rapid emergency response

🔹 Efficient Anesthetic Breathing System

• Low system leakage: ≤100 mL/min (at 3 kPa)
• Standard 22mm/15mm conical connectors for broad compatibility
• CO₂ absorbent canister capacity: 500 mL
• APL valve adjustable range: 0–50 cmH₂O for flexible airway pressure control

🔹 Precise Anesthetic Vaporizer

• Compatible with multiple agents: Isoflurane, Sevoflurane, Enflurane
• Concentration range: 0–6% (Isoflurane/Enflurane), 0–8% (Sevoflurane)
• High output accuracy with minimal deviation
• Single Selectatec mounting system for easy installation

🔹 Eco-Friendly Gas Scavenging System

• Active AGSS: extraction rate up to 80 L/min for efficient waste gas removal
• Passive AGSS port: 30mm conical connector compatible with various exhaust systems

🔹 Wide Environmental Adaptability

• Operating conditions: 10°C–40°C, 15%–95% humidity (non-condensing)
• Storage conditions: -20°C–55°C, 10%–95% humidity (non-condensing)
• Suitable for diverse climates and clinical settings
